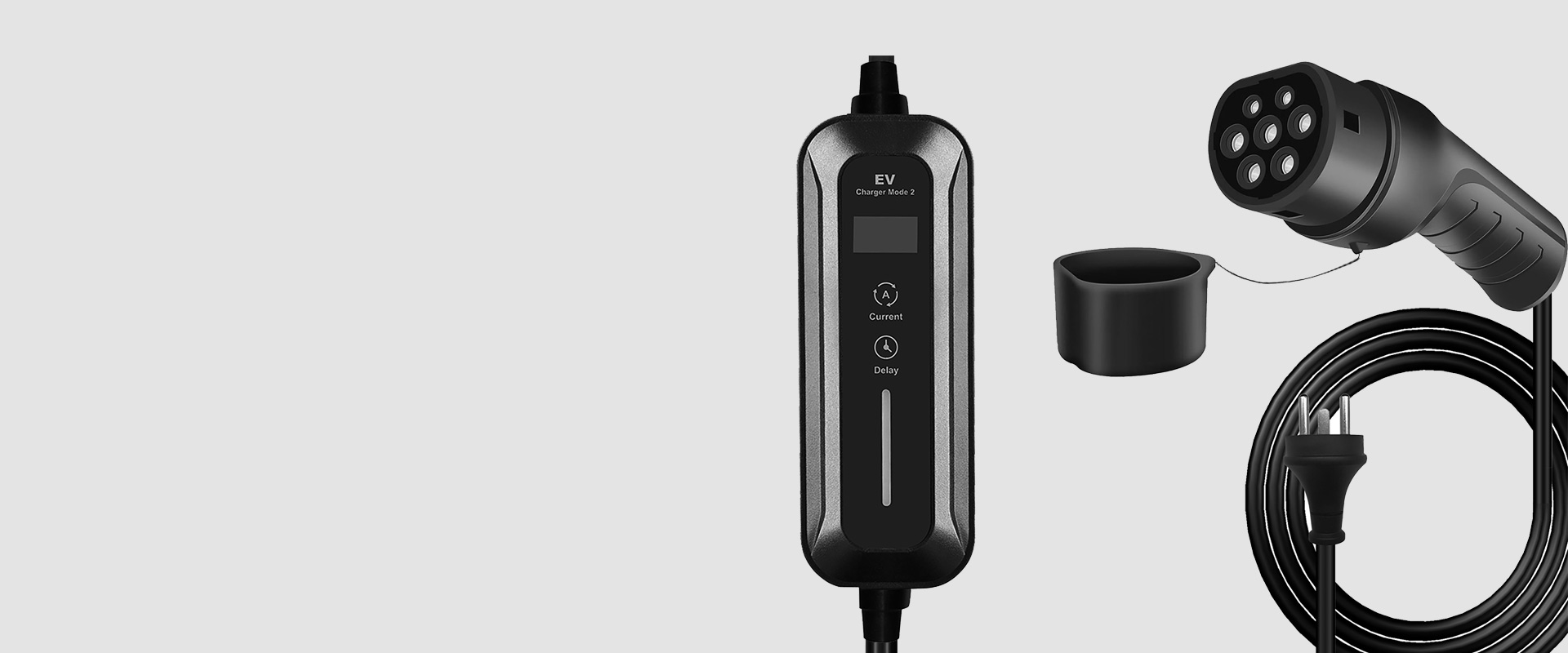

Max.6A 1 Phase IP20 Denmark Plug & Type 2 Connector

Mode 2 Portable EV Charger

▪ IP20 Denmark Plug - Type 2
▪ 1-phasing, switchable current 6A
▪ Voltage: 230V±10% AC, Max. Power 1.4KW
▪ Irradiated XLPO insulation(Low Smoke/Halogen free)
▪ Cable 3*2.5mm²+1*0.5mm²
▪ PUR Jacket
▪ OD: 11.7±0.3mm
▪ Length: 3/5/7.5/10m

TECHNICAL DETAILS

  • ▪ Mode 2 Portable EV Charger with In-cable control and protection device (IC-CPD)
    ▪ Ingress Protection:IP67(IC-CPD), Type 2 connector(mated-IP65, unmated-IP54)
    ▪ Durability: ≥10,000 Connections
    ▪ Firmness: Resistant to running over by a car for plug(pressure up to 2 tonnes)
    ▪ Compatible with Battery Electric Vehicle(BEV) and Plug in Hybrid Electric Vehicle(HPEV) that have a CCS2 or Type 2 charging connection and can be charged with alternating current

    ▪ PUR feature:
    Flame retardant( IEC60332-1)
    Halogen free(IEC 60754-1/2)
    Oil resistant(IEC 60811-404)
    Acid-proof alkaline(IEC 60811-404)
    UV resistant(IEC 50289-4-17)
    Low-temperature impact(IEC 60811-506)
    Water absorption (1EC 60811-402)
    Hydrolysis resistant(IEC 60811-2-1)

  • ▪ OLED Showing charging current, voltage, power, charging time, Internal temperature etc.
    ▪ Over voltage protection, Under voltage protection, Over current protection, Over temperature protection, CP--Voltage protection, Relay protection, Leakage protection etc.
    ▪ IC-CPD standard: IEC 62752:2016, AMD1:2018

    ▪ Plug & Connector standard:
    DIN VDE0620-1:2016+A1
    DIN VDE 0620-2-1:2016+A1
    EN 62196-1:2014
    EN 62196-2:2017
    EN 17186:2019

    ▪ Cable standard: EN 50620:2017+A1
    ▪ Operating Temperature: -30 ~+50°C
    ▪ Altitude<2000m

Application and precautions

Whether at a charging station or at a conventional safety socket - your electric or hybrid car can be charged almost anywhere nowadays. To make the connection, you always need a suitable charging cable or charger. Here UNO® offers the right products to make your charging process as easy and flexible as possible.
