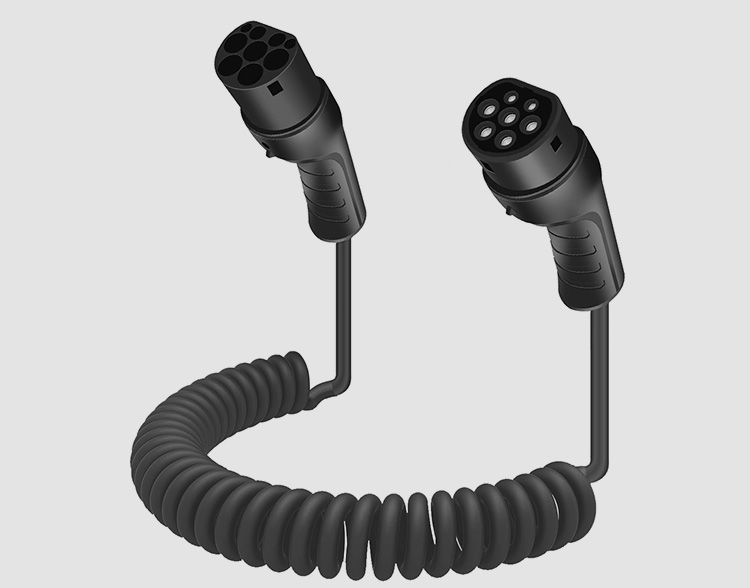

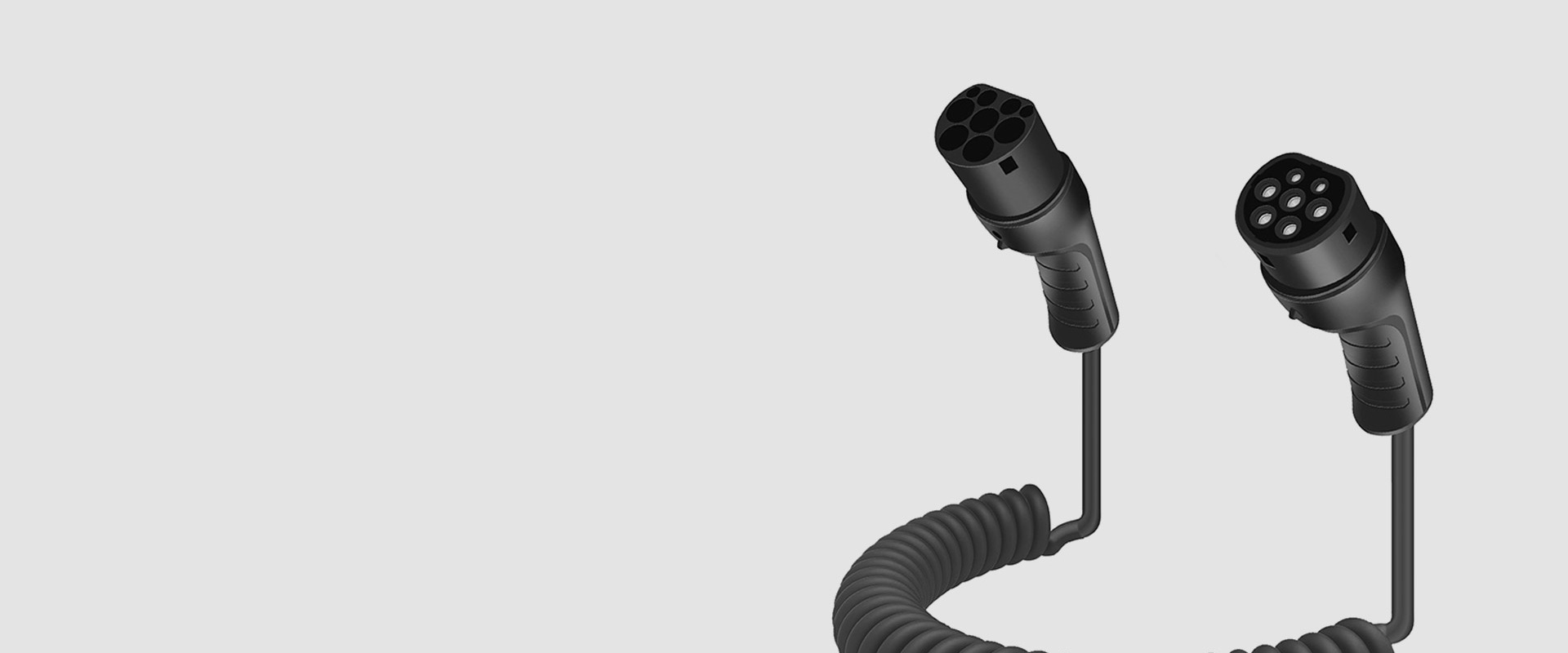

Type 2 to Type 2, 1-phasing, 32A, 7.4KW, PUR Jacket, IP65

EV Charging Spiral Cable

▪ EV Charging Spiral Cable
▪ Type 2 - Type 2
▪ 1-phasing ,32A, 7.4KW
▪ Irradiated XLPO insulation(Low Smoke/Halogen free)
▪ Cable 3*6.0mm²+1*0.5mm²
▪ PUR Jacket
▪ OD: 13.5±0.3mm
▪ Length: 3/5/7.5/10m

TECHNICAL DETAILS

  • ▪ Ingress Protection:mated-IP65,unmated-IP54
    ▪ Durability: ≥10,000 Connections
    ▪ Firmness: Resistant to running over by a car for plug(pressure up to 2 tonnes)
    ▪ Compatible with Battery Electric Vehicle(BEV) and Plug in Hybrid Electric Vehicle(HPEV) that have a CCS2 or Type 2 charging connection and can be charged with alternating current
    ▪ Cable assembly standard:EN 62196-1:2014 / EN 62196-2:2017 / IEC 61851-1:2019
    ▪ Plug&Connector standard:EN 62196-1:2014 / EN 62196-2:2017 / EN 17186:2019
    ▪ Cable standard: EN 50620:2017+A1
    ▪ Operating Temperature:-30 ~+50°C
  • ▪ PUR feature
    Flame retardant( IEC60332-1)
    Halogen free(IEC 60754-1/2)
    Oil resistant(IEC 60811-404)
    Acid-proof alkaline(IEC 60811-404)
    UV resistant(IEC 50289-4-17)
    Low-temperature impact(IEC 60811-506)
    Water absorption (1EC 60811-402)
    Hydrolysis resistant(IEC 60811-2-1)

Application and precautions

Whether at a charging station or at a conventional safety socket - your electric or hybrid car can be charged almost anywhere nowadays. To make the connection, you always need a suitable charging cable or charger. Here UNO® offers the right products to make your charging process as easy and flexible as possible.
